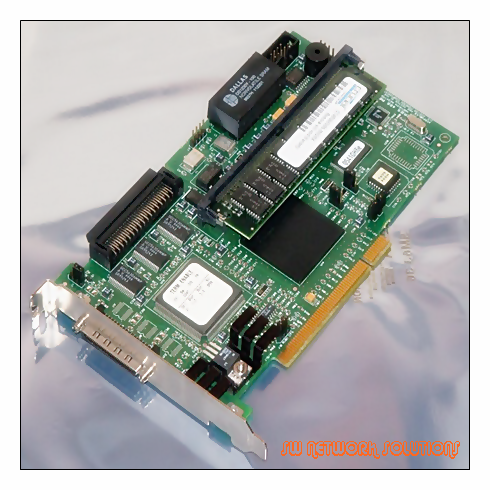

MEGARAID AMI EXPRESS PLUS PCI SERIES 466 CONTROLLER CARD REFURB p/n MEGARAID466
Product Description
AMI MegaRAID Express Plus PCI Series 466 16MB Refurbished p/n MEGARAID466 with 60 days warranty
Conroller Specification: -Intel i960ŪRP 32 bit RISC Processor @ 33 Mhz -PCI 2.1 Compliant -PCI Bus Master with Burst Data Transfer Rate of 132 MB/s Up to 128 MB Cache Using One 72 Pin SIMM Bank -Write Through or Write Back on a Logical Drive Basis Adaptive Read-Ahead -EDO or FPM SIMMS -AMIBIOS?RAID Firmware on Flash EPROM -Non-volatile RAM Stores RAID Configuration -Tone Generator Provides Audible System Warnings -Half Length PCI Footprint (7.5" x 4.2")
SCSI SPECIFICATION -Single Symbios Logic 53C895 (LVDS/SGL) SCSI Processor -Supports Ultra2 Speeds of 80 MB per second -SCSI Cable Lengths of up to 25 Meters with LVDS Drives -Low Voltage Differential or Single Ended SCSI Bus with Active Termination -Automatic Termination Disable via Cable Detection -Single 68 Pin High Density Internal Connector -Single 68 Pin Ultra High Density External Connector -Supports up to 15 Devices per Channel -RAID Levels 0, 1, 3, 5, 10, 30 & 50 Supported -Tagged Command Queuing -Supports Scatter/Gather -Multi-Threading of up to 256 Commands Simultaneously -Multiple Rebuilds and Consistency Checks w/Transparent and User Definable Priority -Variable Stripe Size for All Logical Drives -Supports up to 6 Non-disk Drives per Adapter
Conroller Specification: -Intel i960ŪRP 32 bit RISC Processor @ 33 Mhz -PCI 2.1 Compliant -PCI Bus Master with Burst Data Transfer Rate of 132 MB/s Up to 128 MB Cache Using One 72 Pin SIMM Bank -Write Through or Write Back on a Logical Drive Basis Adaptive Read-Ahead -EDO or FPM SIMMS -AMIBIOS?RAID Firmware on Flash EPROM -Non-volatile RAM Stores RAID Configuration -Tone Generator Provides Audible System Warnings -Half Length PCI Footprint (7.5" x 4.2")
SCSI SPECIFICATION -Single Symbios Logic 53C895 (LVDS/SGL) SCSI Processor -Supports Ultra2 Speeds of 80 MB per second -SCSI Cable Lengths of up to 25 Meters with LVDS Drives -Low Voltage Differential or Single Ended SCSI Bus with Active Termination -Automatic Termination Disable via Cable Detection -Single 68 Pin High Density Internal Connector -Single 68 Pin Ultra High Density External Connector -Supports up to 15 Devices per Channel -RAID Levels 0, 1, 3, 5, 10, 30 & 50 Supported -Tagged Command Queuing -Supports Scatter/Gather -Multi-Threading of up to 256 Commands Simultaneously -Multiple Rebuilds and Consistency Checks w/Transparent and User Definable Priority -Variable Stripe Size for All Logical Drives -Supports up to 6 Non-disk Drives per Adapter
